OPEC Oil Skimmers, surface oil removal, oil spill clean up, primary water treatment, fats oils and greases, fixed or mobile spill response.

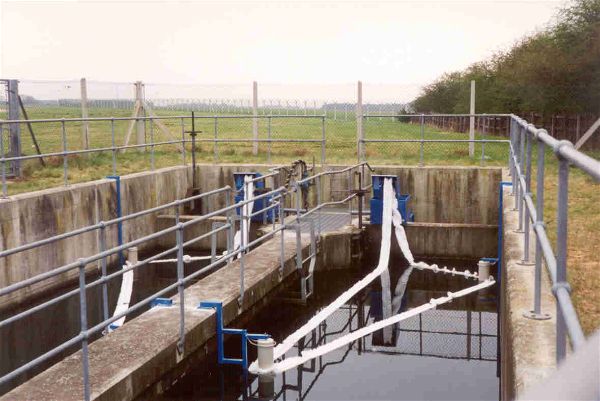

Air Field Interceptor

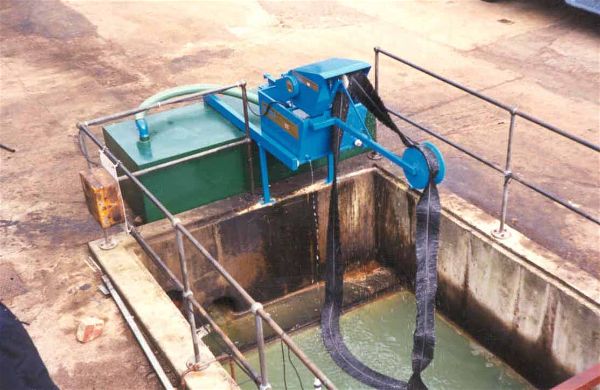

Bearing Manufacturer

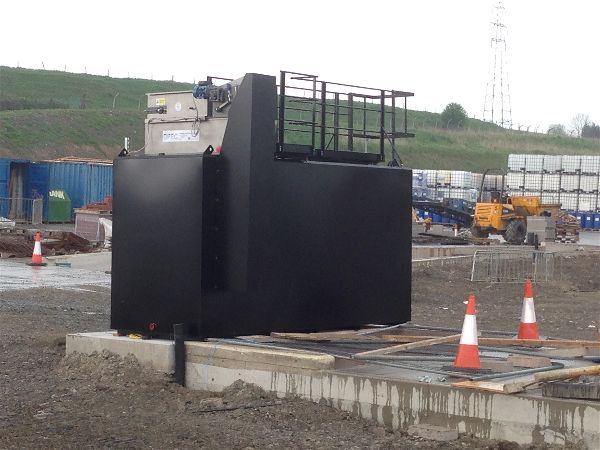

Chemical Manufacturing Plant

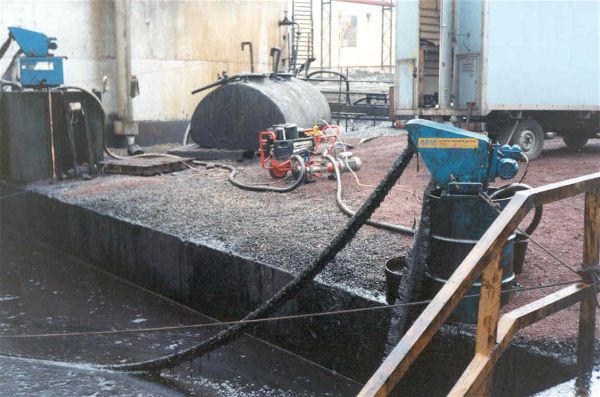

Emergency Oil Spill

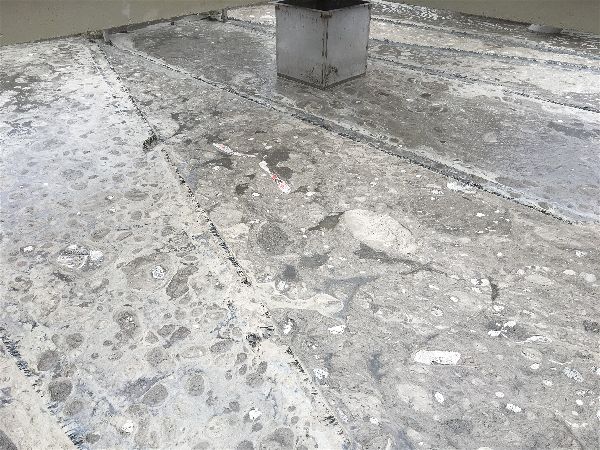

Fats Oils Grease Removal

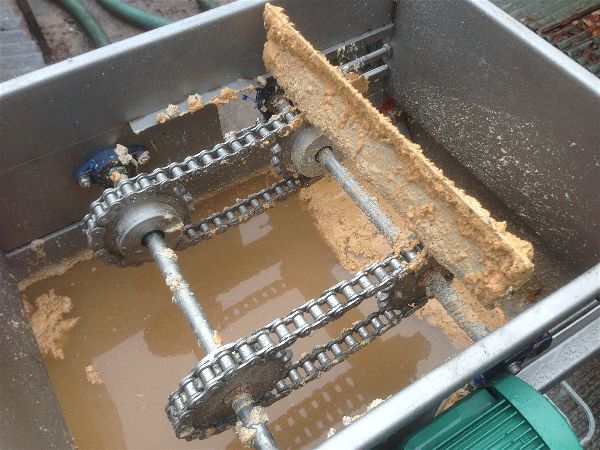

Oil Skimmers - Fats Oils Grease Removal
Fats Oils Grease

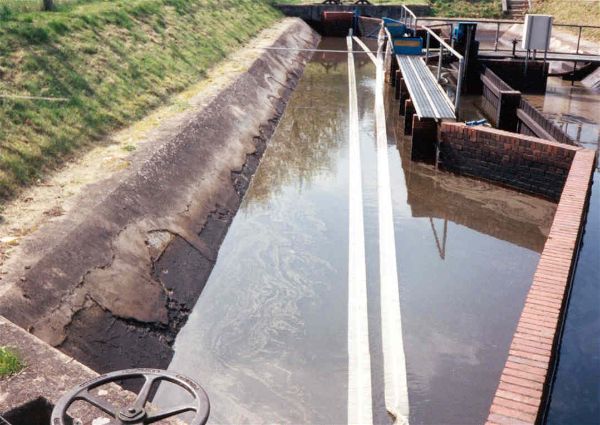

Fire Training College

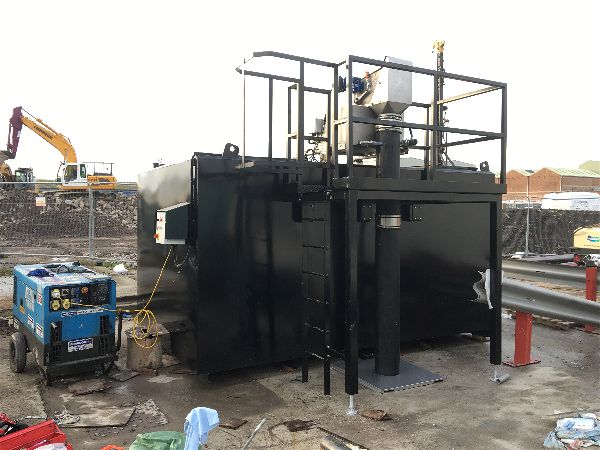

Fuel Terminal

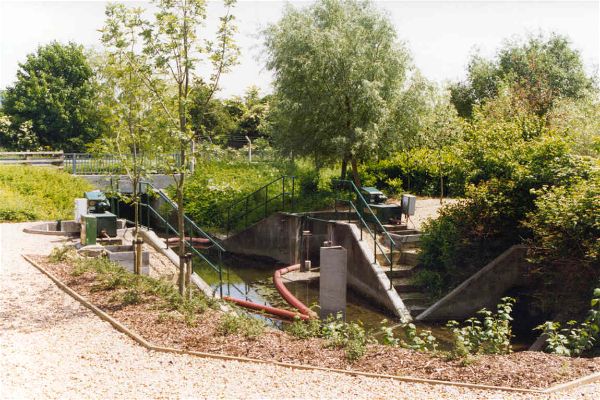

Industrial Estate

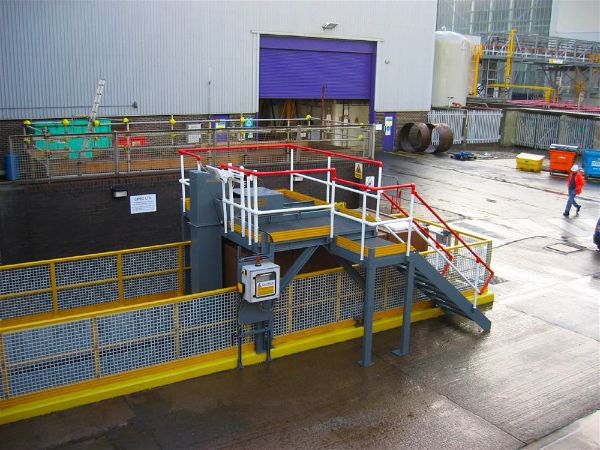

Power Station

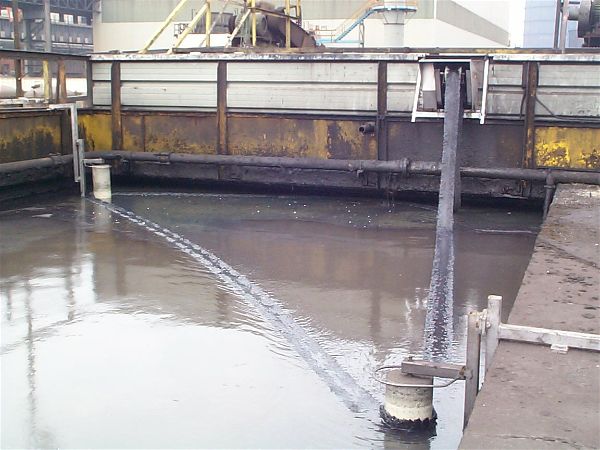

Steel Works Grease

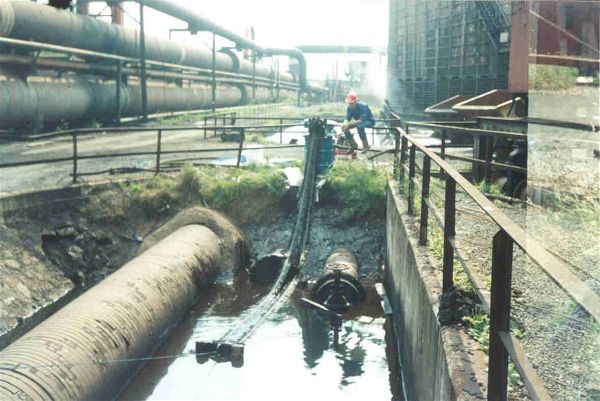

Steel Works Spill

Oil Mop Skimmers

We are the leading oil mop skimmer manufacturer in the world. We originally developed the skimmer in the 1970’s. Since then we have sold more than 2000 systems throughout the world for numerous applications including;

  • Oil Refineries – fixed and mobile, settlement lagoons, API separators and other
  • Oil Fields – evaporation ponds, gathering stations, down well
  • Power Generation – nuclear, gas, CHP, coal and oil fired power stations, national grid, interceptor and lagoons
  • Food manufacturing – cooked meats, sauces, bread, dairy, beverages and other fats, oils and grease (FOG) removal in the effluent treatment process
  • Steel Production – all areas of steelmaking and steel processing fluids which require separation and removal of oil contamination
  • Brownfield Remediation – borehole extraction, trenching and lagoons
  • Emergency Oil Spill Response – trailer mounted and lightweight versions, diesel powered or hydraulic for inland streams, rivers and lakes as well as marinas, ports and harbours and coastal pollution response
CASE STUDY on Skimmers

Skimmers: Explained

The mop is made from polypropylene which is specially constructed to form a large surface area ‘net’ to encapsulate the oil on the surface of the water. The mop is made to any length required from 2m-120m long. This is an endless loop, factory joined which is rotated and squeezed by the mop skimmer drive unit (skimmer head). The liquids are squeezed off from the skimmer head and processed through the ST5 oil/water separator tank (water decanter) mounted underneath. Any free water is returned to the place it was collected and concentrated oils, fats or greases are sent to the rear of the tank for either gravity feeding a tank or further pumping to another area for collection.

The skimmer head can be powered by any electric drive. Hydraulic, air and diesel options are also available.

Mops are made in either black or white material. Black is specifically for heavier/sticky oils. The white mop is more general purpose and able to collect lighter oils such as diesel and kerosene.

It is designed to operate 24/7.

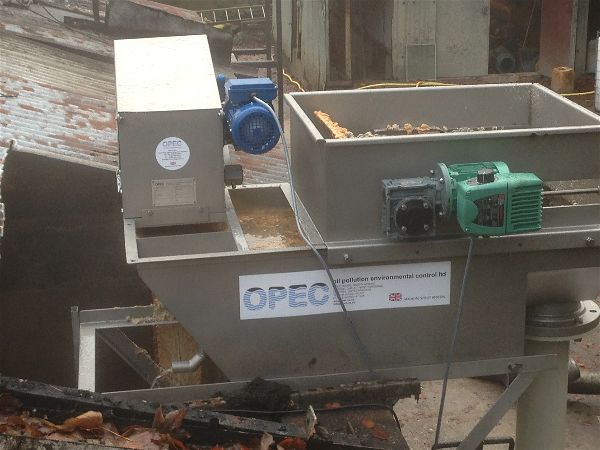

In many cases we manufacture to order with bespoke accessories to suit the clients needs such as bunded collection tanks, mounting frame work, electrical control gear (panels, sensors etc) as well as our separator scraper unit which is popular for FOG removal in the food industry when viscosity is too high to keep the collected materials moving.

  • Tried and tested design since the 1970’s
  • Uses endless looped mops. No need to join on site using our quick mop install function
  • Low power consumption
  • ATEX Certified zone 1 model available
  • Up to 40m lift
  • Up to 120m length
  • Versatile design – mops deployed either vertically down holes or horizontally across interceptors, lakes etc
  • Can sweep very large areas using pulley or guide rollers
  • Built in separator/decanter unit to concentrate oil collection
  • Not affected by floating debris
  • Works 24/7
  • 25 lifetime guarantee
  • Stainless steel construction
  • Rugged hard wearing components to withstand tough environments
  • After sales support and service contracts
  • Large stock of spare parts available for next day delivery
  • Machines available for hire

Types available:

X30 – Oil Xtractor
Code Description Drive Width (mm) Length (mm) Height (mm) Net Weight (kg)
X30.1.A Oil Skimmer and ST5 oil/water separator tank Electric: 0.18kw, 4 pole, 1-phase, 110v, 50hz, IP55 610 1075 850 66
X30.1.B Oil Skimmer and ST5 oil/water separator tank Electric: 0.18kw, 4 pole, 1-phase, 230v, 50hz, IP55 610 1075 850 66
X30.1.C Oil Skimmer and ST5 oil/water separator tank Electric: 0.18kw, 4 pole, 3-phase, 400v, 50hz, IP55 610 1075 850 66
X30.1.D* Oil Skimmer and ST5 oil/water separator tank Electric: 0.18kw, 4 pole, 3-phase, 400v, 50hz, Flameproof 610 1075 850 76
X30.1.E Oil Skimmer and ST5 oil/water separator tank Air: 10 litres/second @2.8 bar 610 1075 850 67
X30.1.F Oil Skimmer and ST5 oil/water separator tank Hydraulic: 12 litres / minute @ 50 bar 610 1075 850 66

*X30.1.D Flameproof model not ATEX certified, see X35.1.D below for ATEX

X35 – Oil Xtractor
Code Description Drive Width (mm) Length (mm) Height (mm) Net Weight (kg)
X35.1.A Oil Skimmer and ST5 oil/water separator tank Electric: 0.37kw, 4 pole, 1-phase, 110v, 50hz, IP55 610 1000 884 98
X35.1.B Oil Skimmer and ST5 oil/water separator tank Electric: 0.37kw, 4 pole, 1-phase, 230v, 50hz, IP55 610 1000 884 98
X35.1.C Oil Skimmer and ST5 oil/water separator tank Electric: 0.37kw, 4 pole, 3-phase, 400v, 50hz, IP55 610 1000 884 98
X35.1.D* Oil Skimmer and ST5 oil/water separator tank Electric: 0.37kw, 4 pole, 3-phase, 400v, 50hz, ATEX 610 1000 884 110
X35.1.E Oil Skimmer and ST5 oil/water separator tank Air: 10 litres/second @2.8 bar 610 1000 884 95
X35.1.F Oil Skimmer and ST5 oil/water separator tank Hydraulic: 12 litres / minute @ 50 bar 610 1000 884 105

*X35.1.D ATEX Certified Model
